Automatic Welding Machine for air diffusers and grille VWM-A-01

Automatic Welding Machine

VENTECH welding machines are widely used in the air outlets and air duct manufacturing industry. There are GI material air duct or volume control damper welding machines and aluminum air vent welding machines.

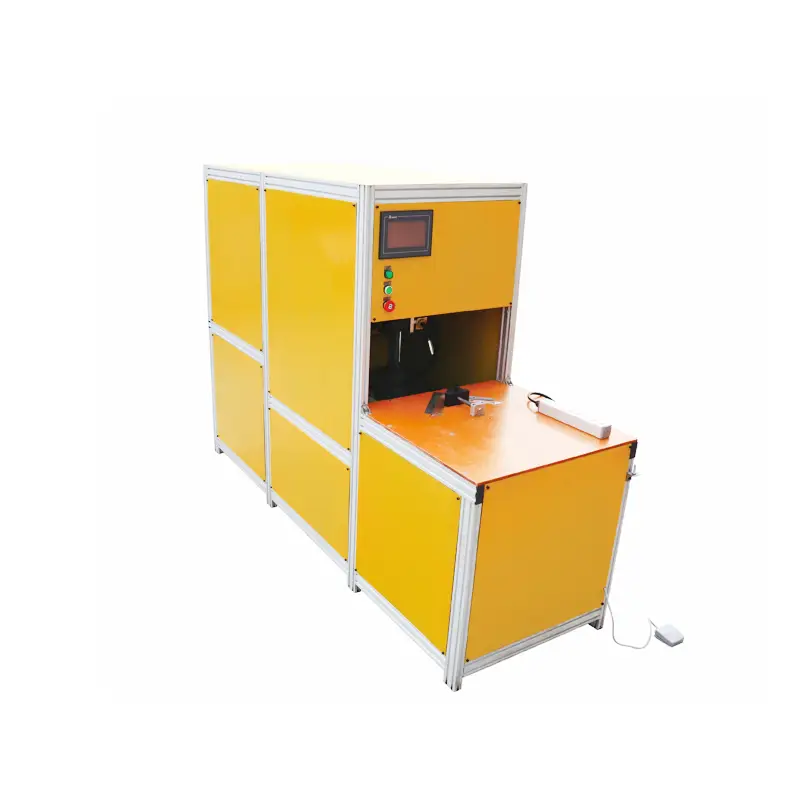

VCM-A-01 is an automatic aluminium welding machine specially designed for welding aluminium diffusers and grilles.

At present, the production process of the air outlets mainly includes punching, one-shot forming, and welding. Welding is the main method of splicing the frames. Because there are more air vent designs and various aluminum profiles, the welding positions of the products are different. And our cnc welding machine can record 60 products into the built-in microcomputer and store them. Each time you produce a different product, you only need to select the required model in the system of the device, and the spot welding machine can automatically retrieve the data. The welding head automatically aligns with the position and quantity of the product's welding points for efficient, accurate, and safe Welding production.

According to our statistics, the number of welding workpieces produced by our automatic welding machine is 5-8 times that of manual welding production, and no special technicians are needed, so they are well received by customers.

The consumables are welding head and welding wire, and the welding wire can be automatically conveyed after being installed in a roll, saving material and time. We can also provide these consumables, please contact us.

◆ Easy operating. No need skilled worker.
◆ High efficiency. 1.5 second per welding spot.
◆ Flexible for all kinds of diffusers and grilles welding.
